3D Level Meter

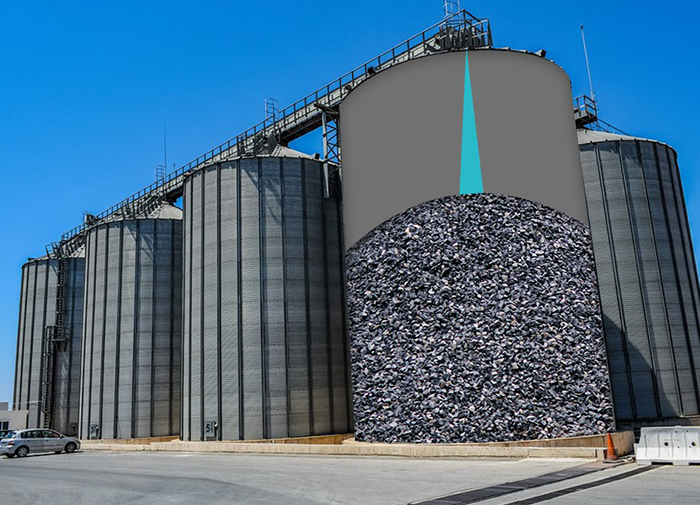

The birth of 3D level meter indicates that the volume and level of the measured material can be accurately displayed by 3D imaging technology in closed or open silos. It integrates the most advanced technology, uses a series of three-dimensional imaging techniques to solve the original unsolvable difficult material measurement problems, and provides industrial manufacturing enterprises with the most comprehensive, accurate and impeccable process material level and volume measurement solutions.

Chat Now

Get Inquiry

Send Email

Introduction

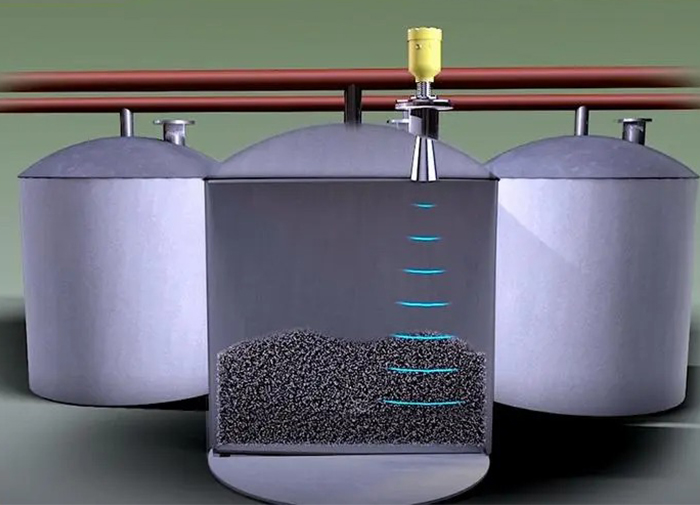

The 3D material level measurement monitoring system is based on radar level scanner. Its principle is to scan bulk material piles with multi-point radar to obtain a two-dimensional profile of the material surface. Digital signals are transmitted to the enterprise cloud 3D material level measurement system through RS485, and the data is processed by software to form a visual 3D hologram so as to calculate level, volume, weight and other parameters of the material in silo. The technology can be used for all kinds of material level monitoring, material quantity monitoring and measurement etc. 3D material level measurement is accurate and reliable, with functions of online monitoring, remote monitoring, material surface visualization, real-time inventory and intelligent alarm.

INDUSTRY SOLUTION

View More +

Concrete Mixing Station

Concrete mixing station is a building material manufacturing equipment composed of mixing host, material weighing system, material conveying system, storage system, control system and other ancillary facilities. It can make concrete which is put into construction and production as building materials, by mixing cement, sand, lime and other raw materials.

Convenient to install

Occupies a small area

Low construction cost

Bulk Material Stockyard

Bulk material stockyard is the main form of bulk material storage, which can be divided into strip stockyard, spherical stockyard and high cylinder wall warehouse according to the different storage structures.

Low cost

Short construction period

Good homogenization effect and easy expansion

Chemical Plant

In chemical production, SRON’s wide application in the field of mixing, bag breaking and storage of plastic particles, plastic additives, and particles.

Good sealing

Low cost

Good corrosion resistance

Reference

We have built projects in more than 30 countries and regions, with more than 900 sets of steel silos and up to 3 million tons of materials storage capacities.

View More +

Mauritania 4x300 tons cement silo project

This project is to expand the storage capacity and loading capacity of the owner's existing cement silo. It requires building four 300-ton special cement steel silos based on the owner's original two 3,000-ton concrete silos, and connecting the new silos with the original silo system to achieve the function of integrated control.

Storage Material: Cement

Silo Type: Bolted silo

Reserves: 4x300 tons

Malaysia 3x5000T Wood Pellet Silo Project

During the project design phase, the company fully considered the storage characteristics of wood pellets, strictly monitored and managed the temperature and humidity in the warehouse, and achieved real-time monitoring. At the same time, combined with the project characteristics and the needs of the owner, high-yield in-and-out warehouse equipment was equipped to solve the problems of broken and blocked materials that may occur during centralized material incoming, feeding and long-distance transportation.

Storage Material: Wood Pellets

Silo Type: Spiral steel silos

Reserves: 3x5000tons

Dynamic Metering System for Silo Storage System

Dynamic metering system is a system for accurately weighing and controlling material quantity in continuous production process. It is also a necessary equipment in the mixing system.

Material: Slag powder, cement

Reserves: Slag (1000 tons) / cement (3000 tons)

Silo type: Spiral silo
