Introduction

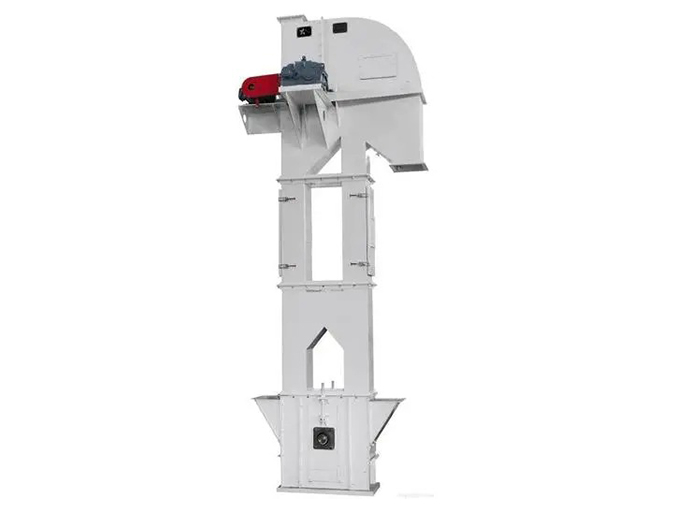

TGD-type wire belt bucket elevator is suitable for vertical lifting of dry bulk materials or small granular materials, and widely used in bulk materials lifting system in building materials, metallurgy, chemical, food, power and other industries. It is an ideal equipment for replacing foreign products with the same specifications.

There are 10 basic models of TGD-type wire belt bucket elevator: TGD315、TGD400、TGD500、TGD630、TGD800、TGD800H、TGD1000、TGD1250、TGD1400、TGD1600.

Advantages

Good Product Performance

The maximum lifting speed is 1.98m/s, the maximum lifting capacity is 1874m³/h, and the maximum lifting height is 120m.

Long Service Life

Long service life, reliable operation, and more than 30,000 hours of trouble-free continuous operation time.

Continuous Operation Available

The buckets are arranged tightly, which can realize continuous feeding and discharging.

Low Power Consumption

Low power consumption, saving energy consumption by more than 30% compared with general elevator, and low cost of use.

High Product Quality

High structural precision, high strength and beautiful appearance.

Convenient Operation and Maintenance

Convenient operation and maintenance, less wearing parts, and reducing maintenance cost by more than 80% compared with general elevator.

Parameter

Model	Bucket width(mm)	Bucket volume(L)	Belt speed(m/s)	Conveying capacity (bucket filling rate φ=70% )
				Bucket spacing(mm）
				280	320	360	400	440	480	520
TGD315	315	6.6	1.31	77	67	60
TGD400	400	14.5	1.5		171	152	137
TGD500	500	18	1.5		212	189	170
TGD630	630	29.3	1.6			315	224	220
TGD800	800	37.3	1.6			400	360	328
TGD1000	1000	58	1.6				694	631	578
TGD1250	1250	72.7	1.93				883	803	736
TGD1400	1400	99	1.93					1094	1003	736
TGD1600	1600	114	1.93					1286	1179	1089
