Tubular Belt Conveyor | HENAN SRON SILO ENGINEERING Co., Ltd

Introduction

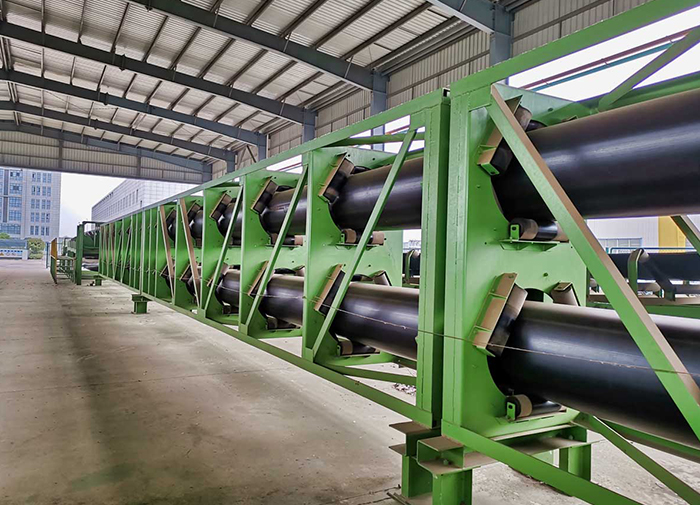

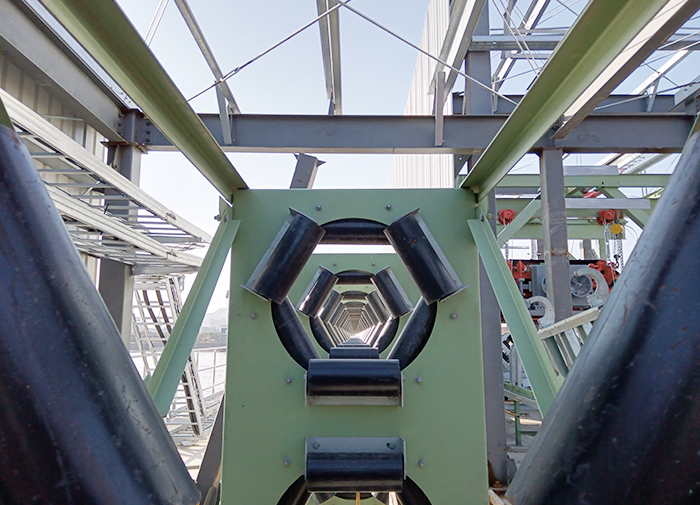

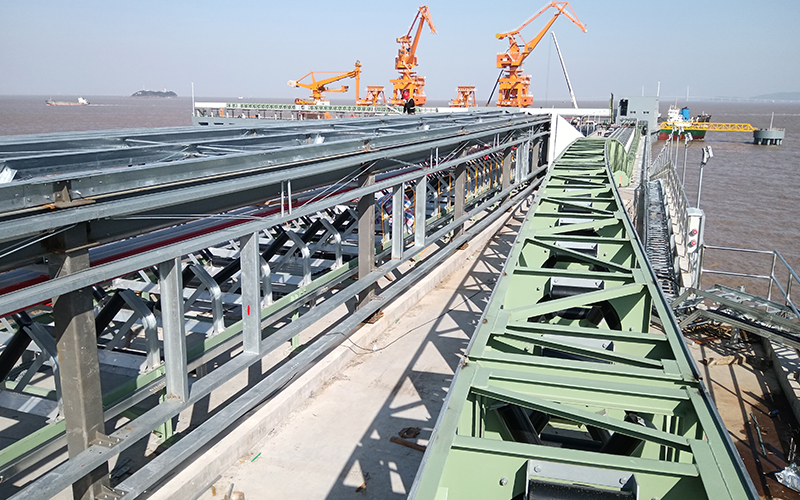

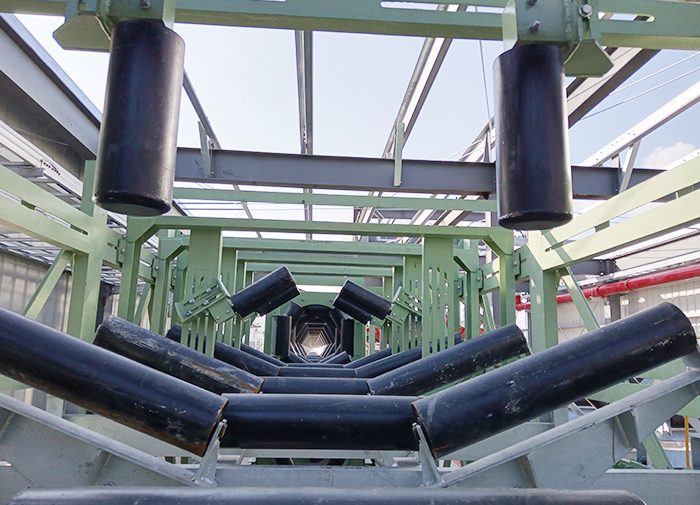

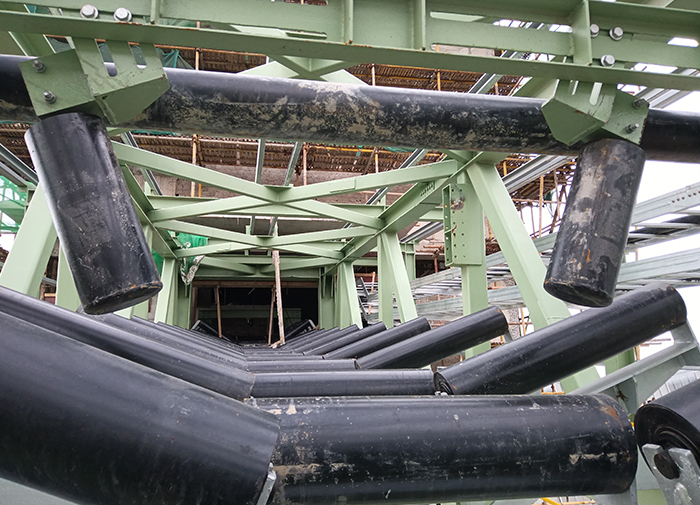

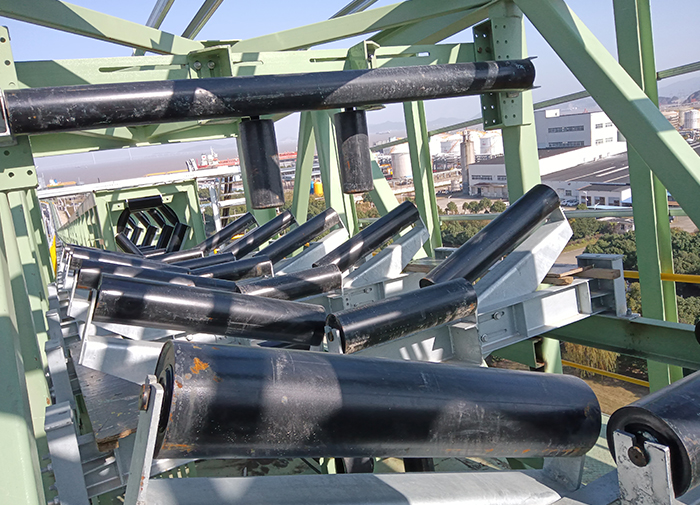

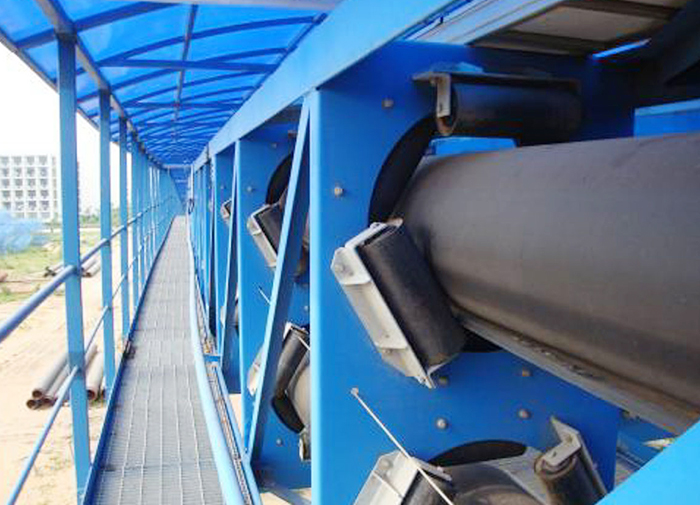

Tubular belt conveyor is a special type of belt conveyor developed on the basis of the grooved belt conveyor. It uses several (usually six) rollers to force the conveyor belt to be tubular, and conveys various of bulk materials such as powder, granule or block. The tubular belt conveyor is suitable for conveying bulk materials with density less than 2500kg/m³. Its applicable working environment temperature is -25～40 ℃; and it can meet the requirements of heat resistance, cold resistance, water proofing, corrosion resistance, explosion proofing, flame resistance, environment protection and other conditions.

Advantages

Very Environmental Friendly

Sealed conveying of materials can reduce environmental pollution

Turning Operation

It can realize turning operation with small curvature radius

Two-Way Conveying

The upper and lower belts can be used to realize two-way conveying

Cost Saving

If the tubular belt conveyor is selected, the trestle is not necessary, which saves the trestle cost

Save Space

Save space, save civil engineering and equipment investment, and reduce the fault point and cost of equipment maintenance and operation

Parameter

Tube diameter（mm）	Belt width（mm）	Belt speed
Tube diameter（mm）	Belt width（mm）	0.8	1.0	1.25	1.6	2.0	2.5	3.15	4	4.5	5
250	1000	118	147	184	236	295	369	464
300	1100	141	176	212	282	353	441	556	706
350	1300		238	297	380	497	594	748	950	1069	1188
400	1600		389	486	622	778	972	1225	1555	1750	1944
500	1900		558	697	893	1116	1395	1758	2232	2512	2790
600	2250		778	972	1244	1555	1944	2449	3110	3499	3888
700	2550		1008	1260	1613	2016	2520	3175	4032	4536	5040
850	3100		1454	1818	2327	2909	3636	4679	5818	6545	7272
