Rapid & Quantitative Train Loading System

Introduction

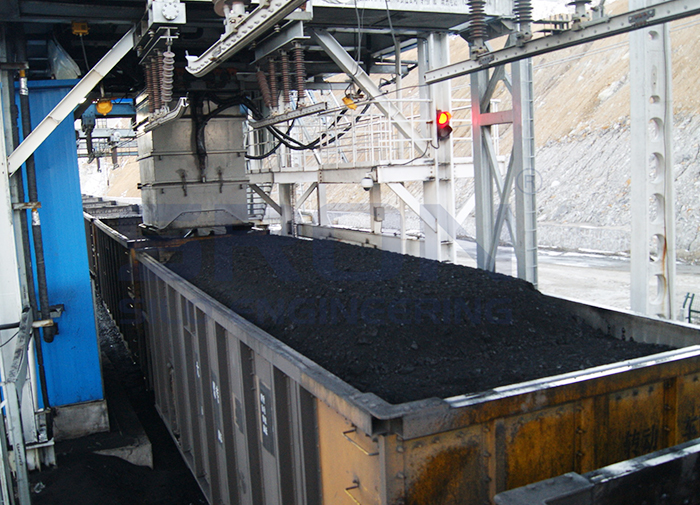

SRON rapid & quantitative train loading system is an international advanced metering instrument, which integrates advanced technologies of mechanical, hydraulic and electric control and other material loading systems. It can realize rapid loading and accurate measurement, as well as automatic control of matched conveying system for circular weighing and loading. It is the most advanced railway loading system for coal, ore and bulk materials at present.

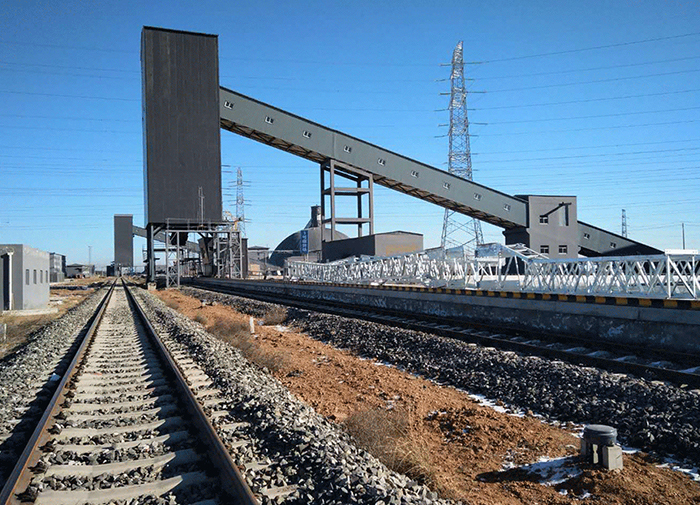

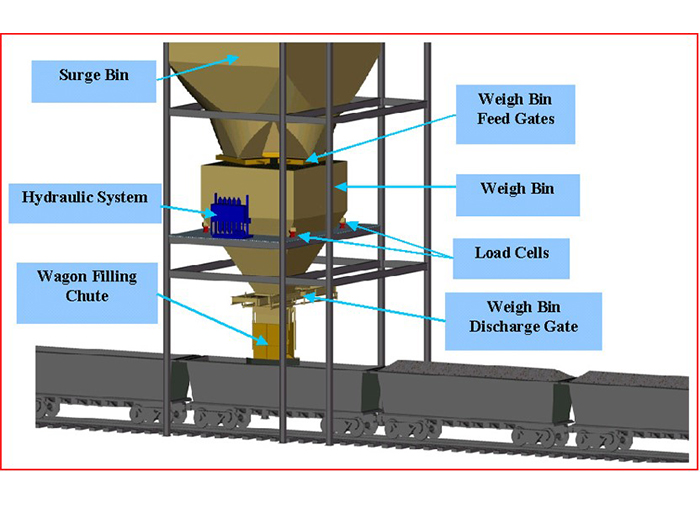

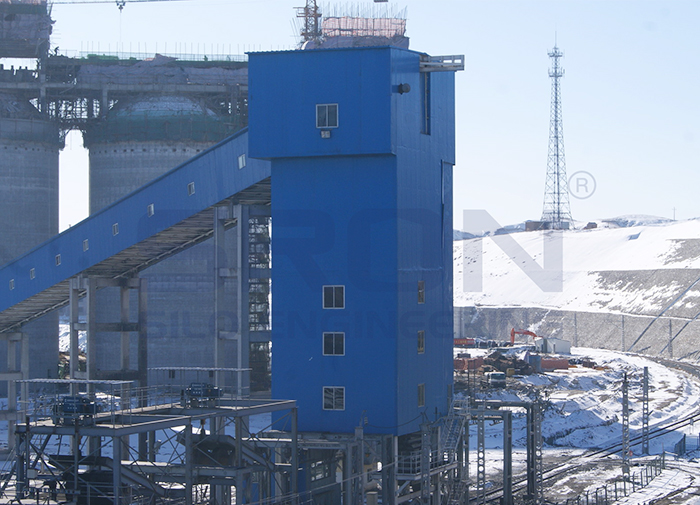

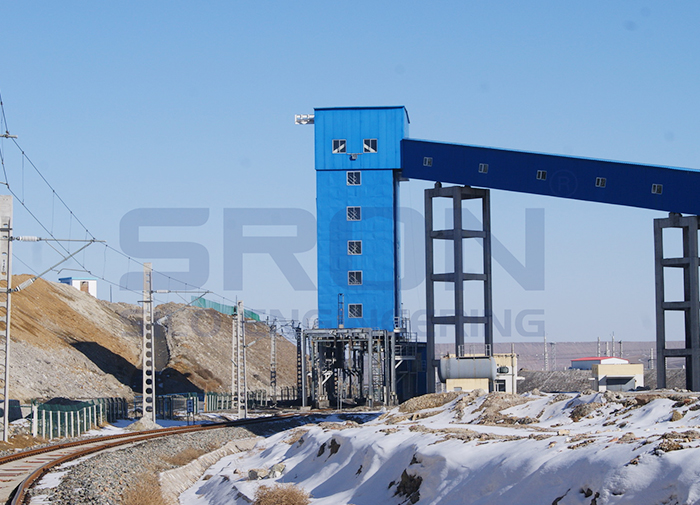

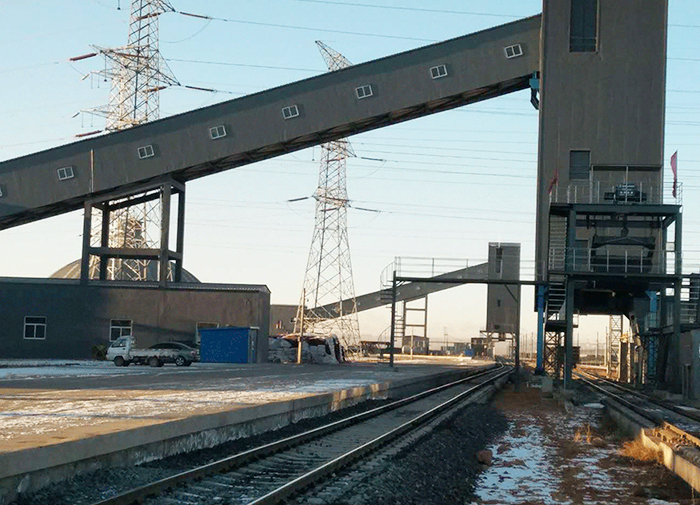

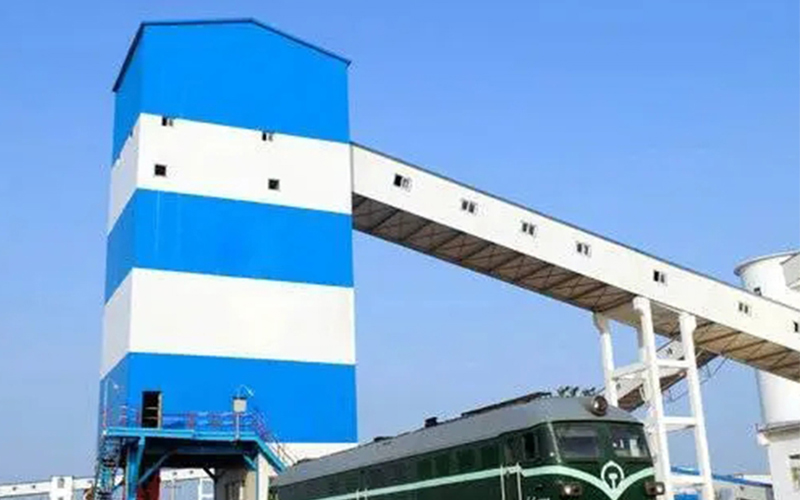

SRON rapid & quantitative train loading system is mainly composed of steel structure tower, loading equipment, weighing system, hydraulic system, electronic control system, computer control system, etc., to realize the operation control, protection, monitoring and display of all relevant equipment in the whole process of train loading.

Advantages

Intelligent Dust Suppressant Spraying System:

The system includes liquid making system and spraying system, and it can realize automatic lifting and spraying, with freezing and thawing resistance and wind erosion resistance.

Intelligent Train Leveling and Compacting Device

The leveling time of each train has been reduced from 4 hours to less than 1 hour at present, improving efficiency and reducing cost.

Flexible

Flexible loading and unloading

Long Service Life

Long service life & continuous working time

Parameter

Loading capacity of single set loading station	≥5500t/h
Loading form	single silo and single rail (single silo and double rails, double silos and double rails)
Effective capacity of buffer bin	≥300 tons
Effective capacity of buffer bin	≥100 tons
Applicable train types	professional design based on the user's actual train type to meet the user's loading requirements
Loading speed	≤50 seconds/section (C80), the time for loading a whole train is less than 1 hour
Weighing accuracy	static weighing accuracy ± 0.1%
Loading accuracy	single section loading error ≤ ± 0.1% The whole train loading error ≤ ± 0.05%
