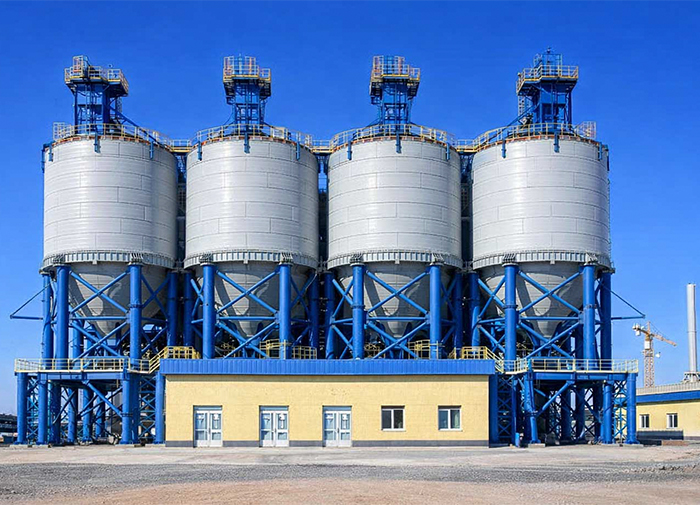

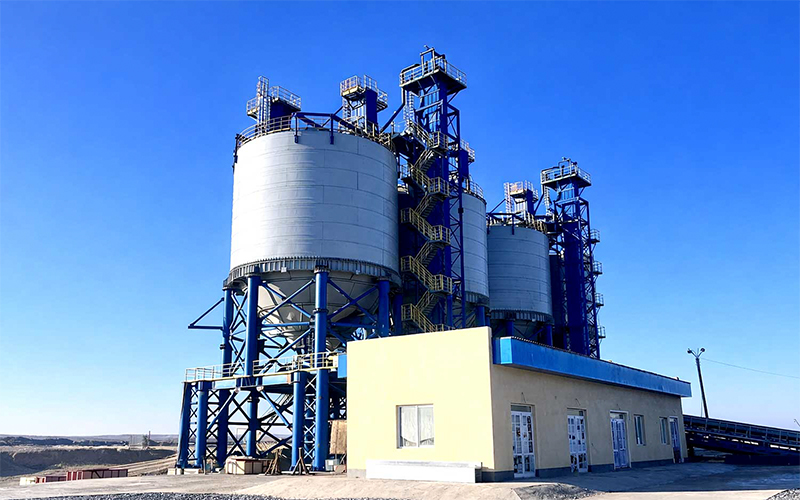

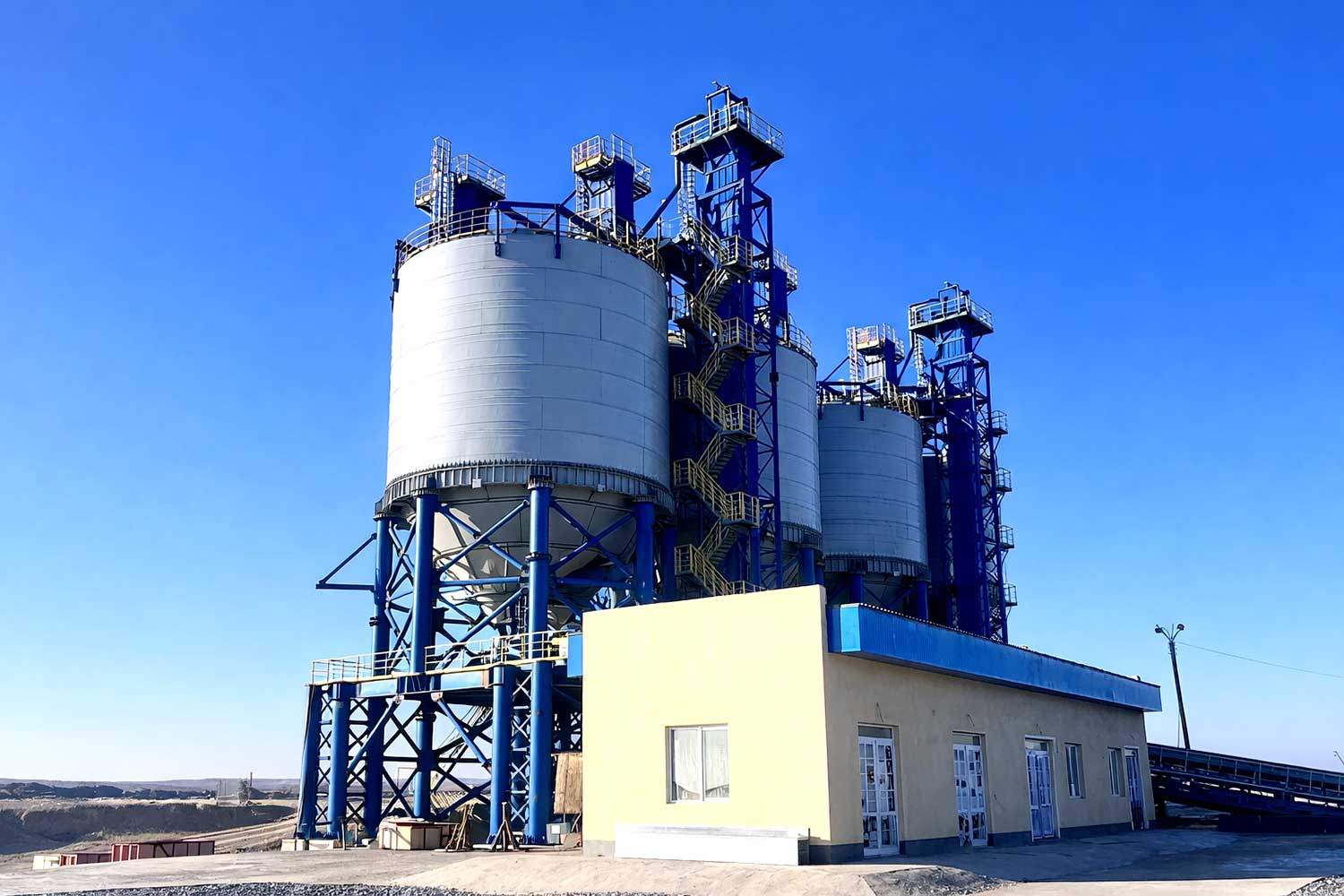

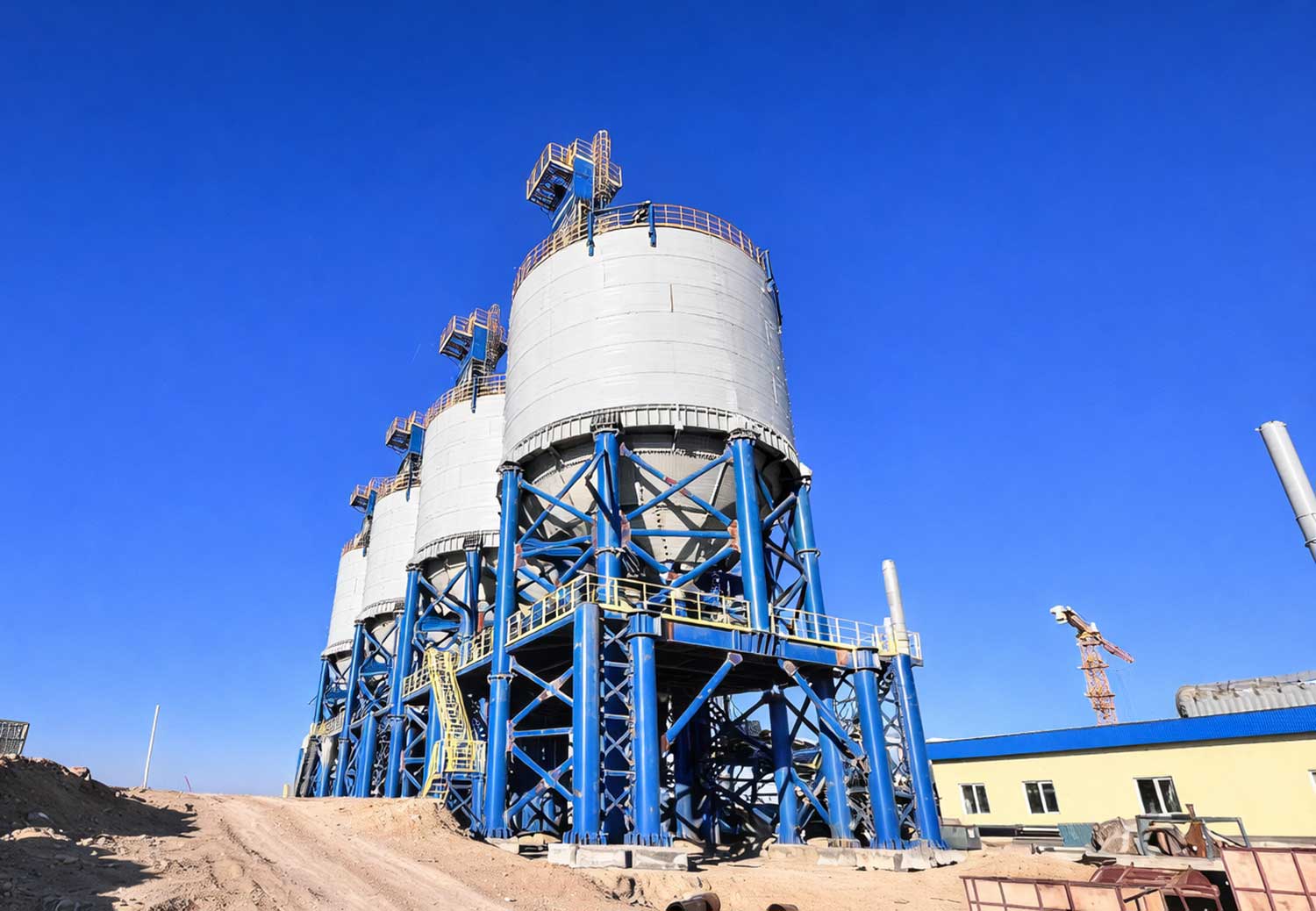

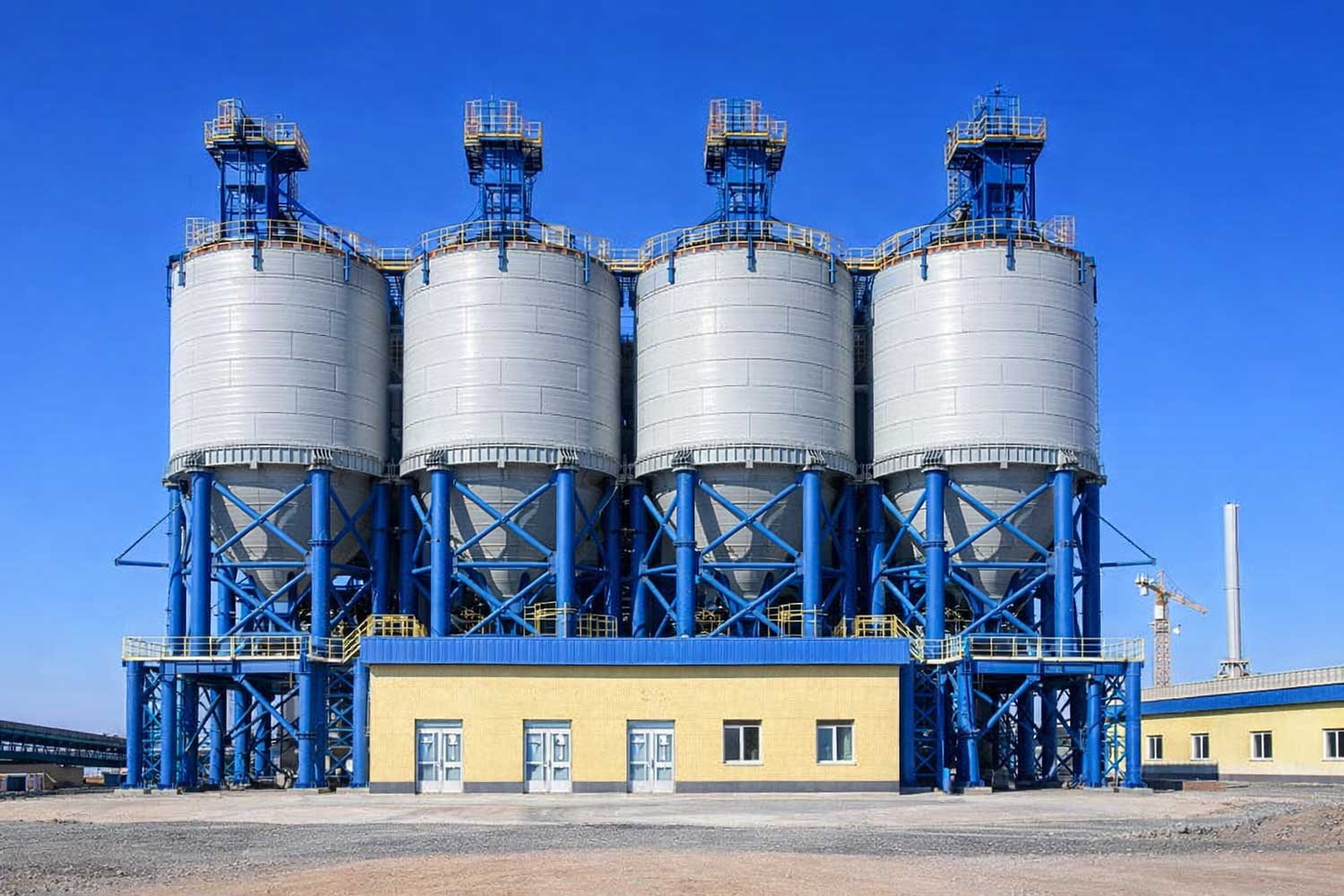

Large Bolted Steel Silo--Sron Silo Engineering

Introduction

Large bolted steel silo is a new product developed independently by SRON to adapt to transportation and construction challenges of overseas projects. After undergoing modular production, processing, and molding, components of the steel silo are transported to the construction site, assembled, and connected by bolts, facilitating quick construction and commissioning.

The maximum diameter of a bolted steel silo can reach 45m, and its storage capacity can reach 50,000 m³. This technology meets market demands and overcomes limitations such as insufficient overseas construction personnel, difficulties in exporting goods, and inconvenient project initiation due to various factors. Thanks to its advanced, safe, and reliable technology, it has obtained several national invention patents and possesses a promising market application outlook.

Advantages

Simple Construction

The main body adopts bolt connection. There is no need for special installation personnel, machinery, or construction personnel; ordinary workers can complete the construction.

Large Capacity

SRON bolted silos have incorporated patented technologies.

Safe and Reliable Structure

Utilizing ANSYS, Staad, and other structural calculation software for analog simulation and design optimization. This includes separate calculation of the internal force effect on bolt joints and envelope values, as well as verification of derived calculations using ANSYS, Staad, and other structural calculation software. The optimal combination is determined based on calculation results to ensure structural safety.

Short Construction Period

This benefits owners by allowing them to put the structure into use quickly and obtain returns on their investment.

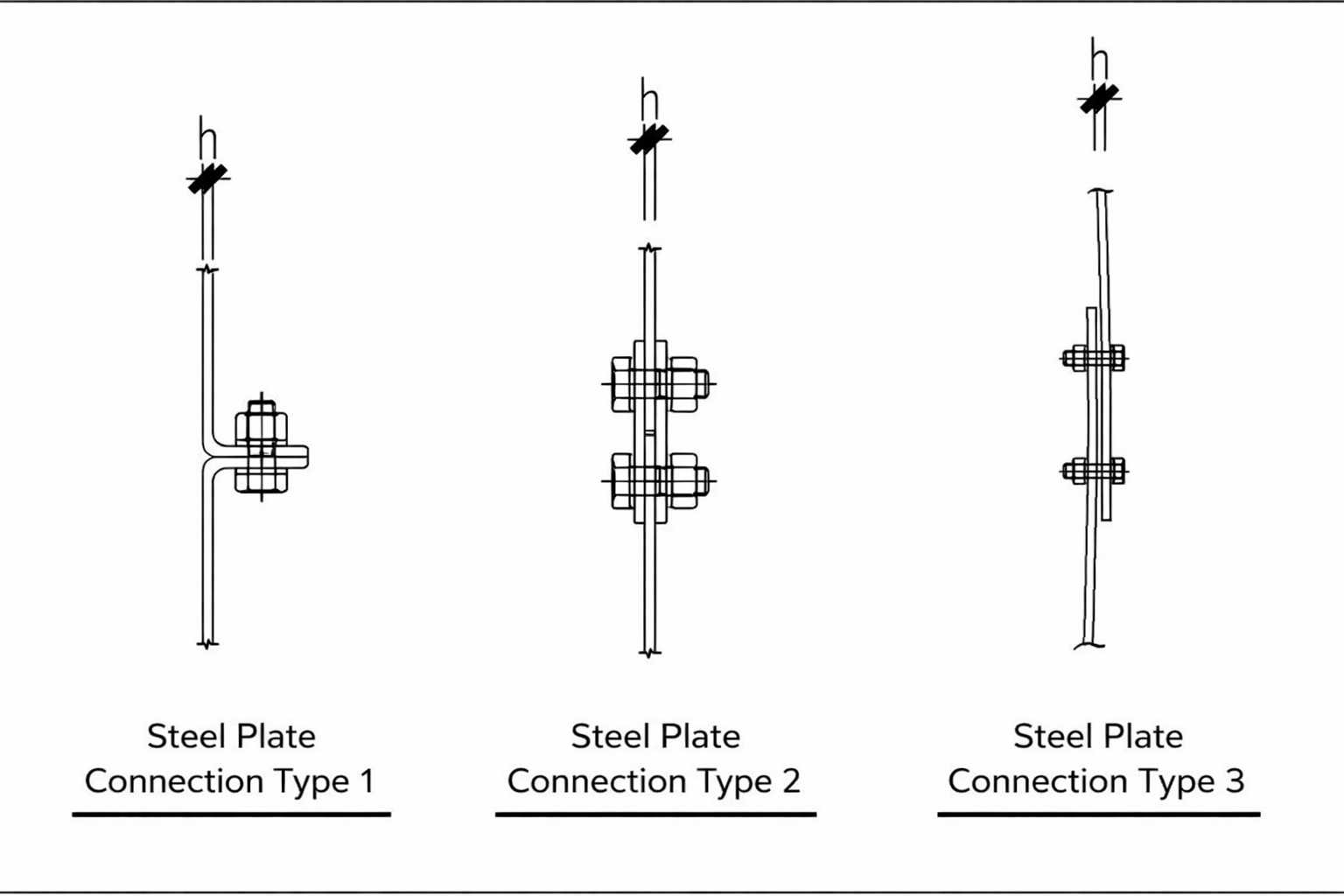

Safe Structural Design

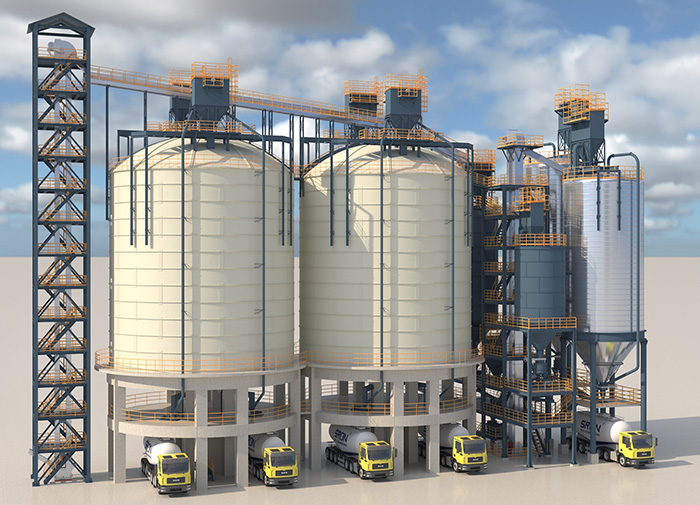

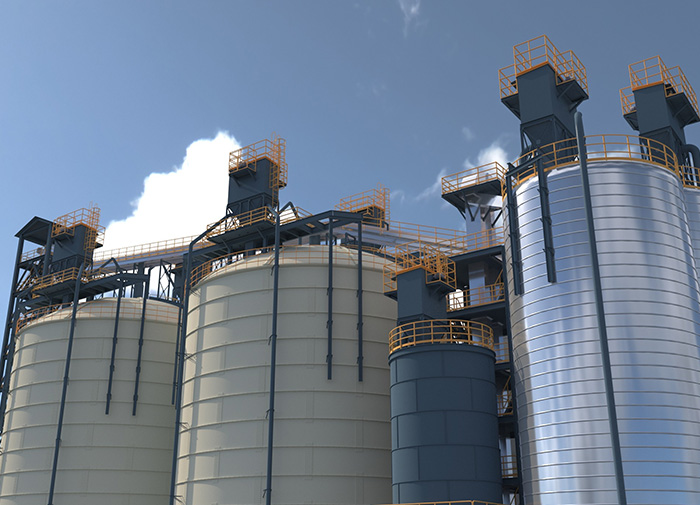

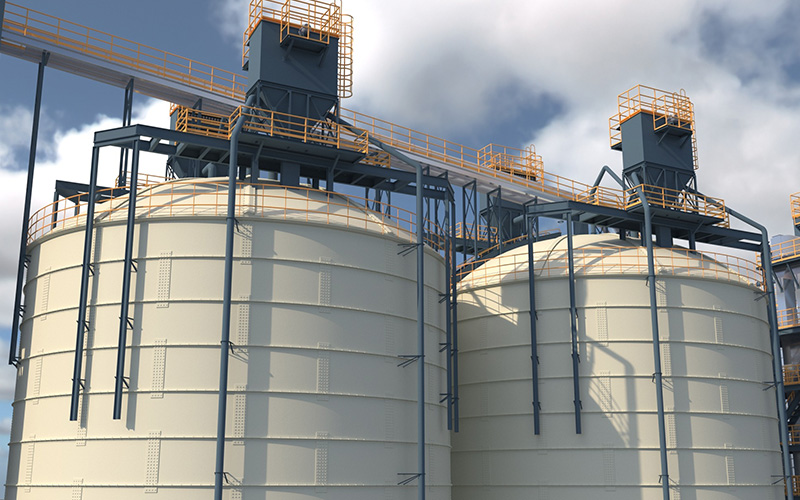

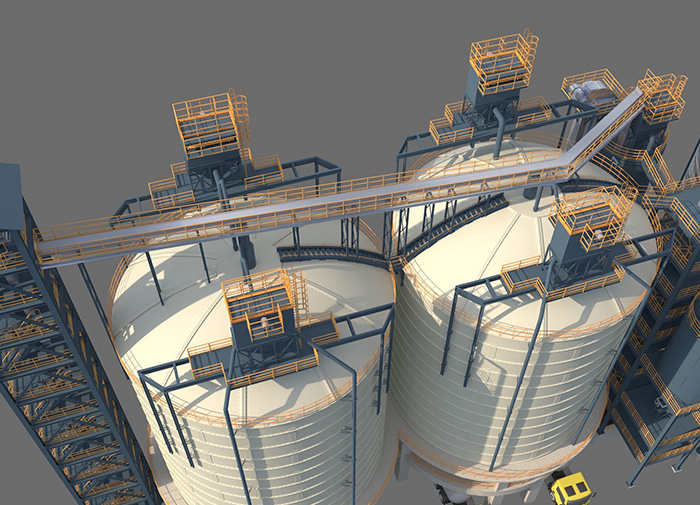

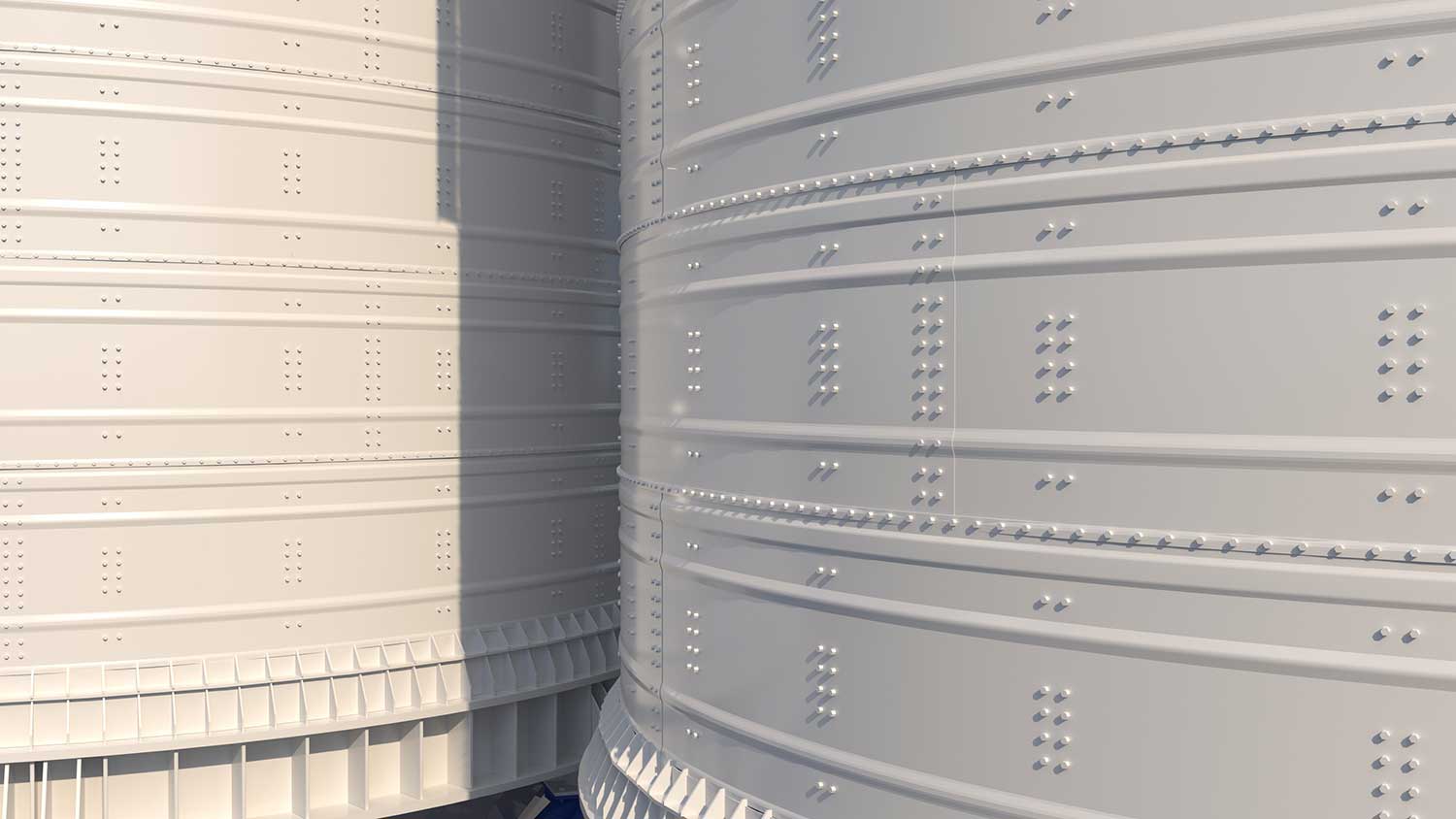

3D Display

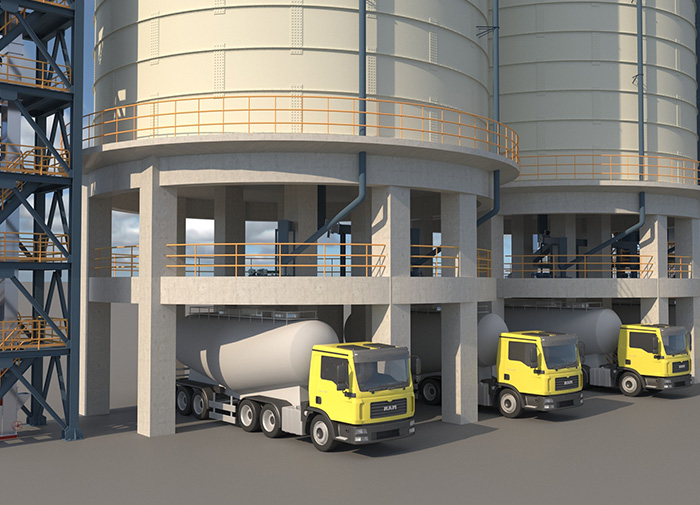

Smooth Discharge System

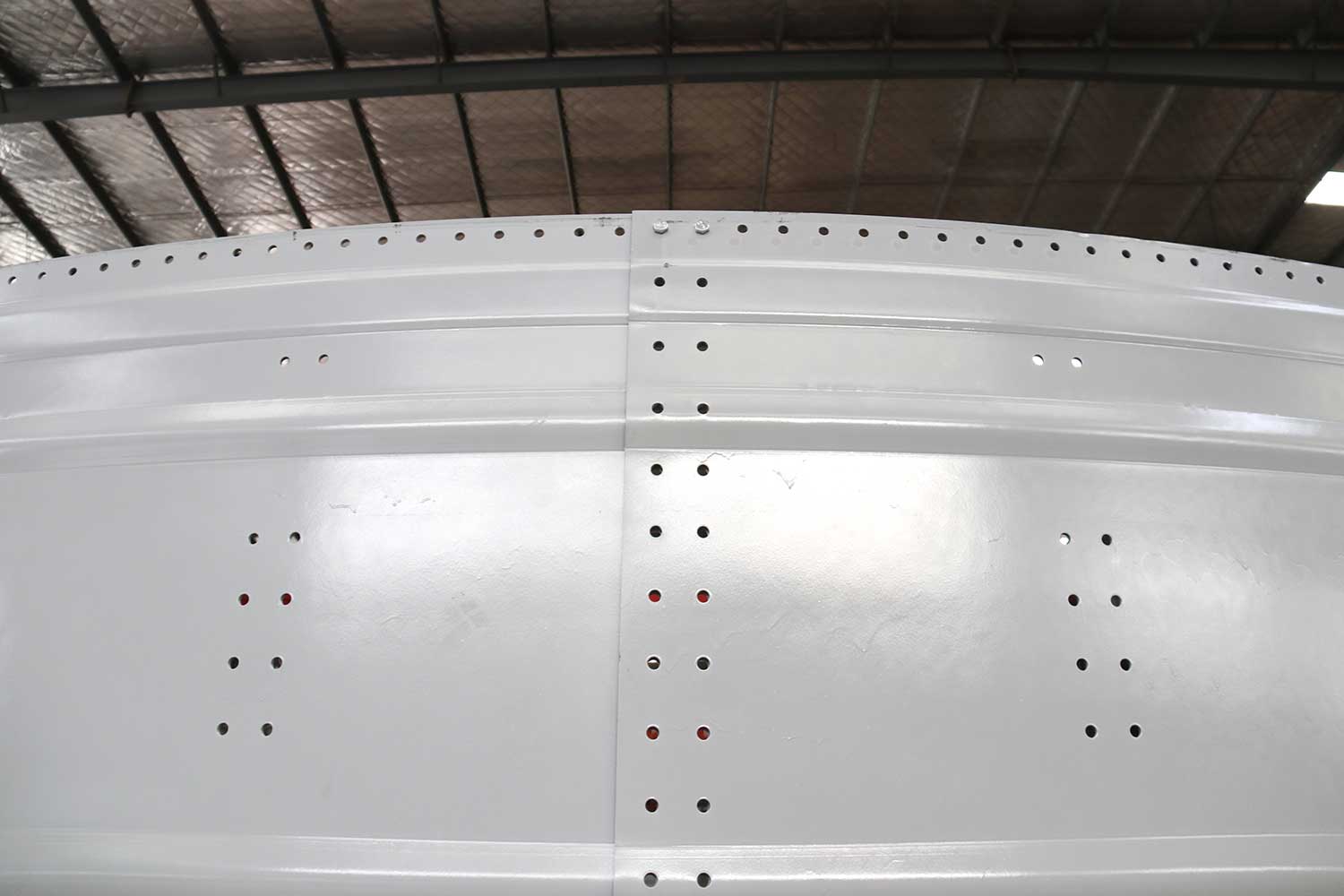

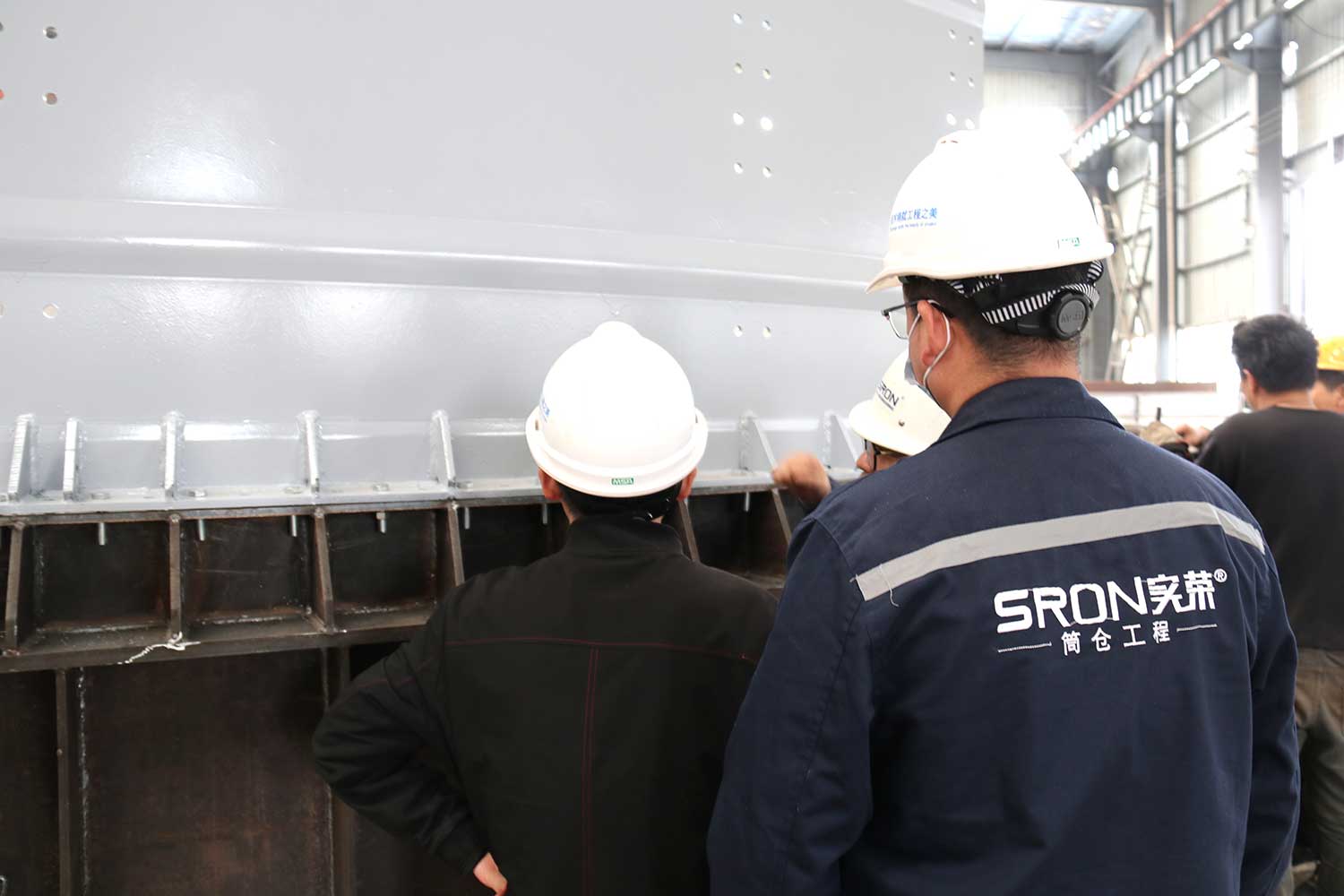

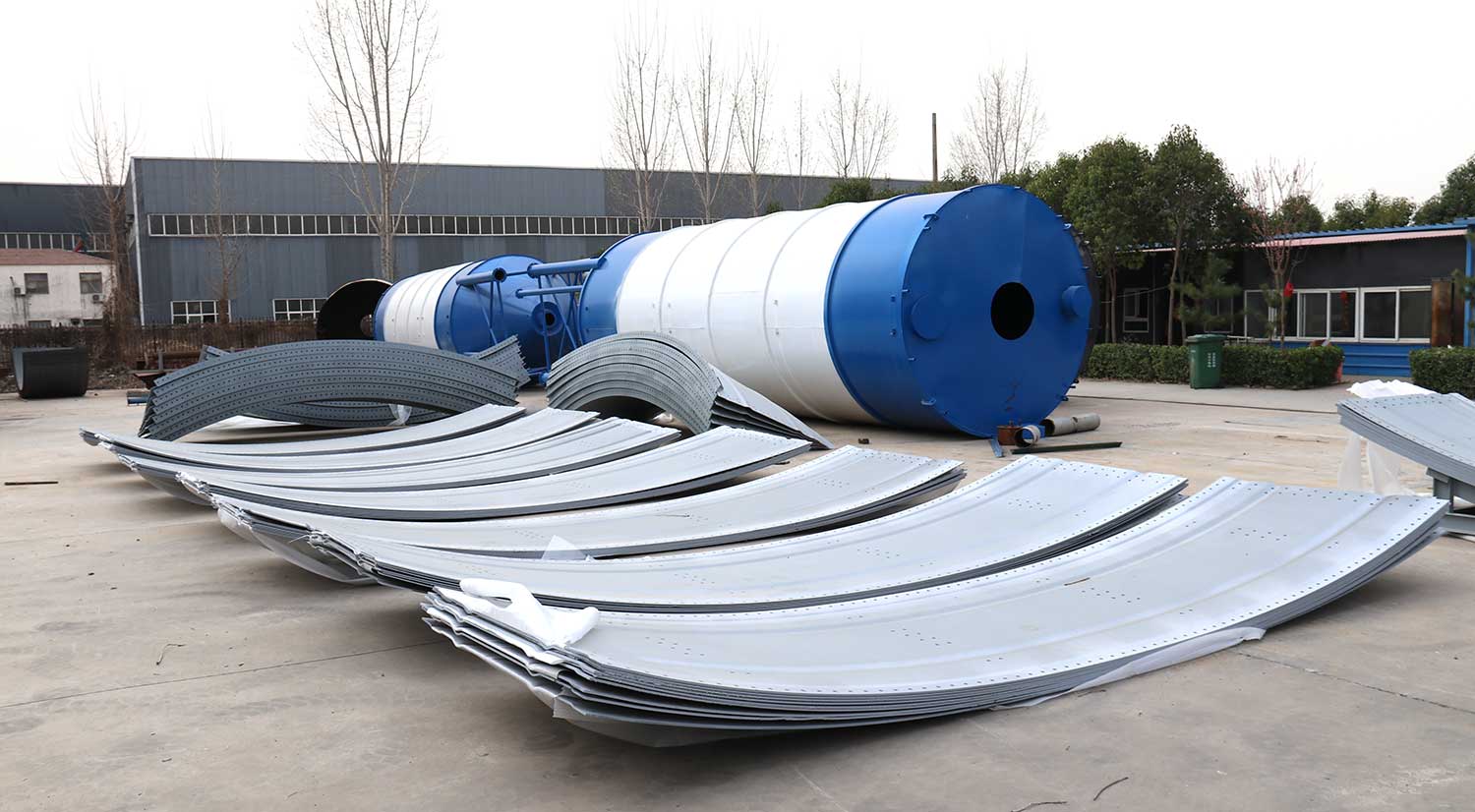

Precision Manufacturing

Outstanding Performance

Intelligent Control

Parameter

SPECIFICATION SELECTION TABLE FOR 1,000-50,000 TONS BOLTED TYPE STEEL SILO FOR CEMENT STORAGE (FLAT BOTTOM)
Serial number	Model	Nominal capacity	Diameter	Silo body height	Silo roof high	Total height	Height-diameter ratio
Serial number	Model	Nominal capacity	Diameter	Silo body height	Silo roof high	Total height	Height-diameter ratio
1	SRON-ASC2-0.1	1000	9.0	13.0	0.70	13.7	1.44
2	SRON-ASC2-0.15	1500	10.0	15.0	0.88	15.9	1.50
3	SRON-ASC2-0.2	2000	12.0	15.0	0.97	16.0	1.25
4	SRON-ASC2-0.25	2500	12.0	17.0	1.06	18.1	1.42
5	SRON-ASC2-0.3	3000	13.0	18.0	1.06	19.1	1.38
6	SRON-ASC2-0.5	5000	15.76	20.44	3.5	23.9	1.30
7	SRON-ASC2-0.8	8000	19.26	22.66	4.0	26.7	1.18
8	SRON-ASC2-1	10000	21.01	23.77	4.5	28.3	1.13
9	SRON-ASC2-1.5	15000	24.51	25.99	5.1	31.1	1.06
10	SRON-ASC2-2	20000	28.01	25.99	6.3	32.3	0.93
11	SRON-ASC2-2.5	25000	29.76	29.32	7.2	36.5	0.99
12	SRON-ASC2-3	30000	33.26	29.32	7.6	36.92	0.88
13	SRON-ASC2-3.5	35000	35.01	29.32	8.4	37.7	0.84
14	SRON-ASC2-4	40000	36.77	30.43	8.4	38.8	0.83
15	SRON-ASC2-4.5	45000	38.52	31.54	8.4	39.9	0.82
16	SRON-ASC2-5	50000	40.27	31.54	8.4	39.9	0.78
Remark:	1. Truss structure roof will be adopt when the silo diameter larger that 35meters; 2. The density applicate for process design is 1.3t/m3. For structure design,applicate 1.6t/m3. 3. The steel silo structure design base on 6 grades seismic fortification. The above silo model is standard model, can be adjusted according to clients requirement.
