Industrial Silo Manufacturer Offer The Best Storage Solutions

Introduction

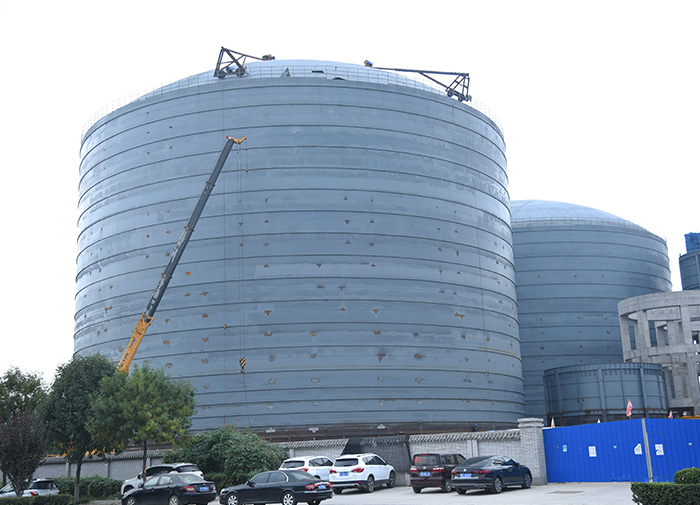

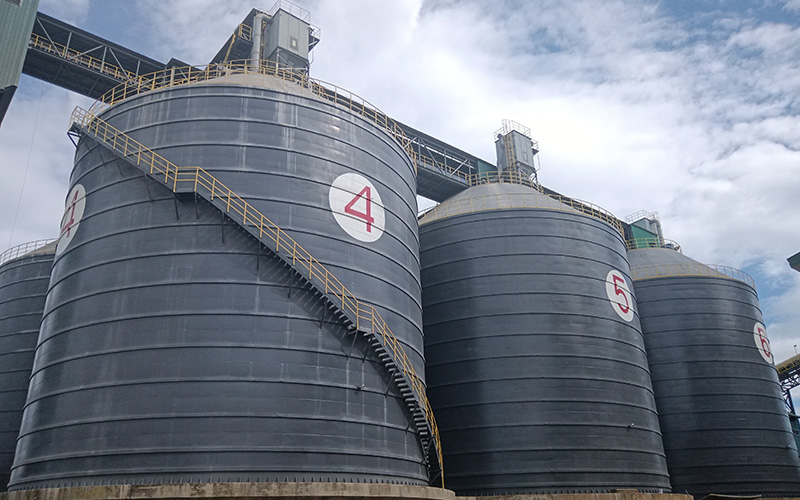

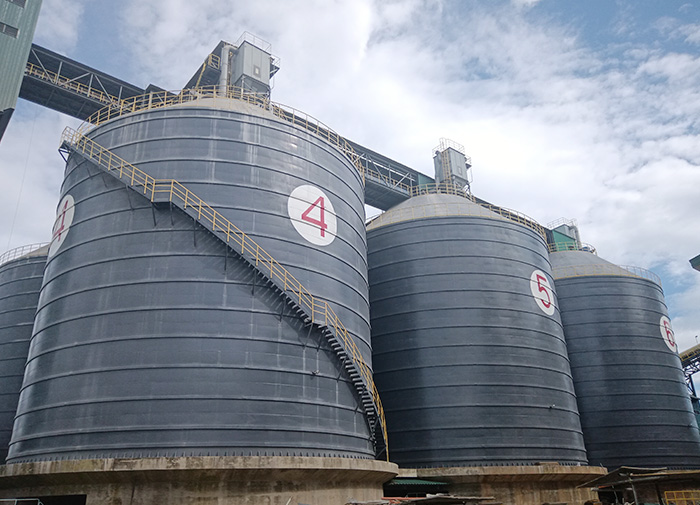

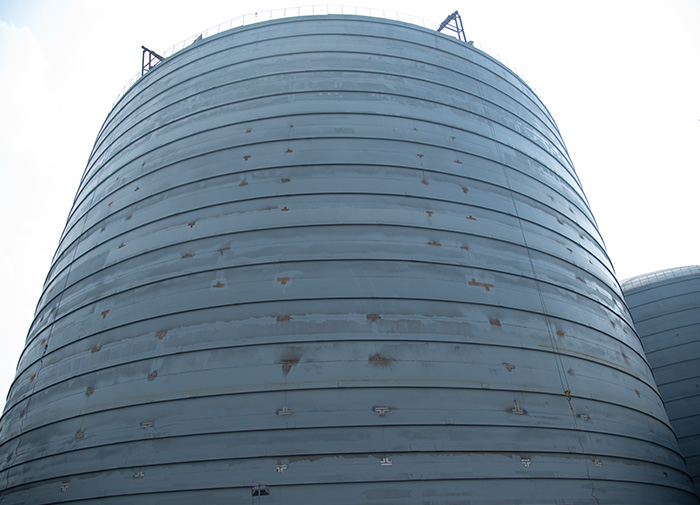

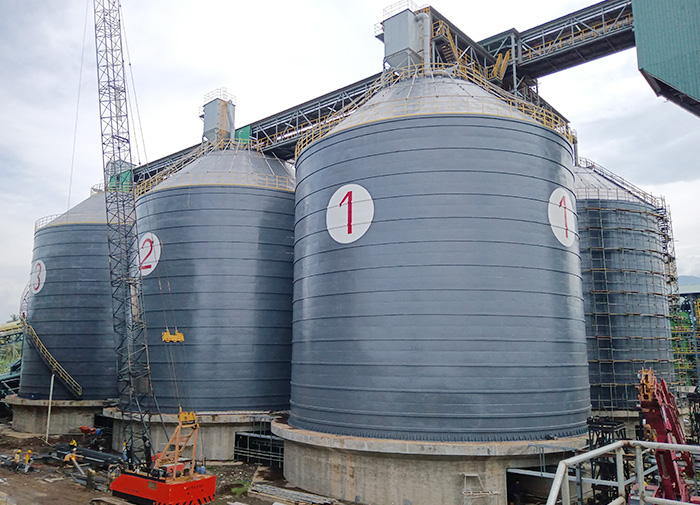

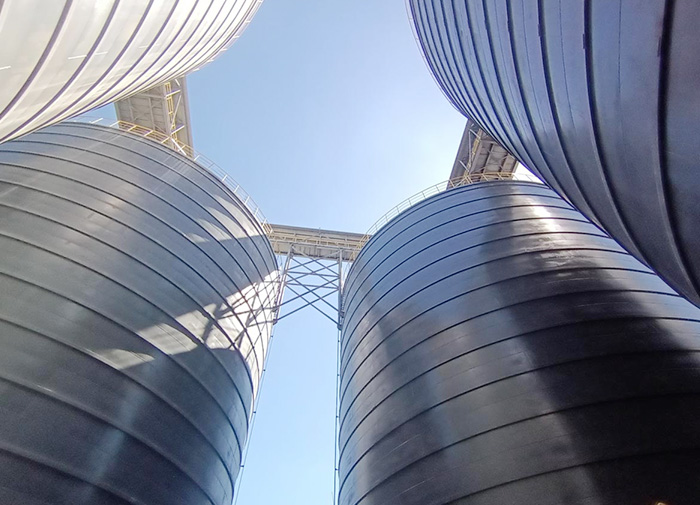

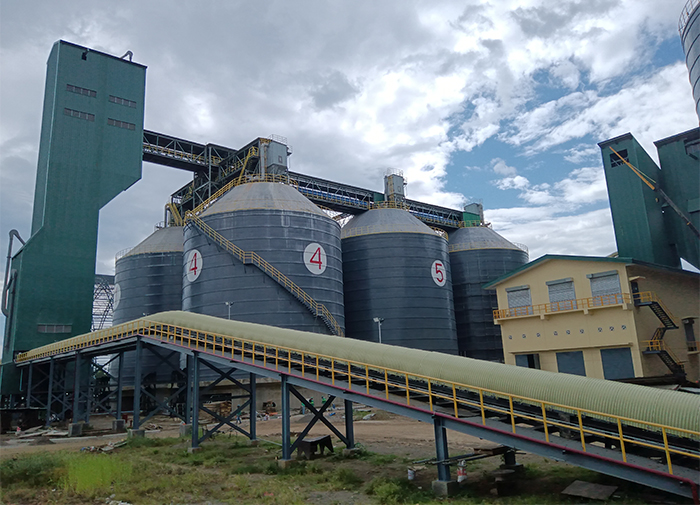

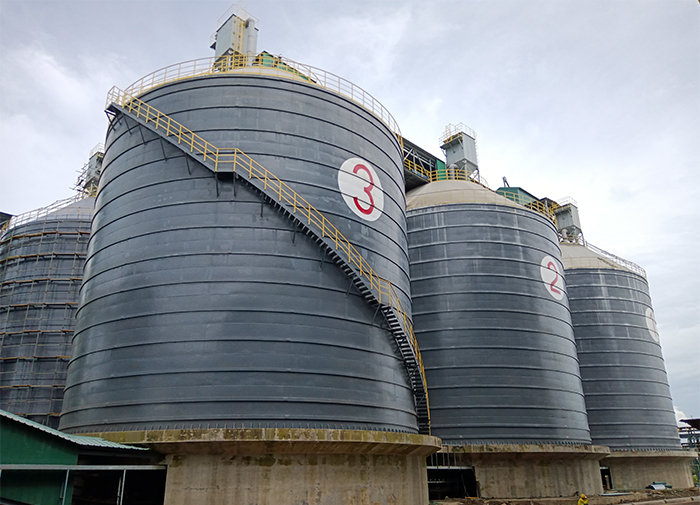

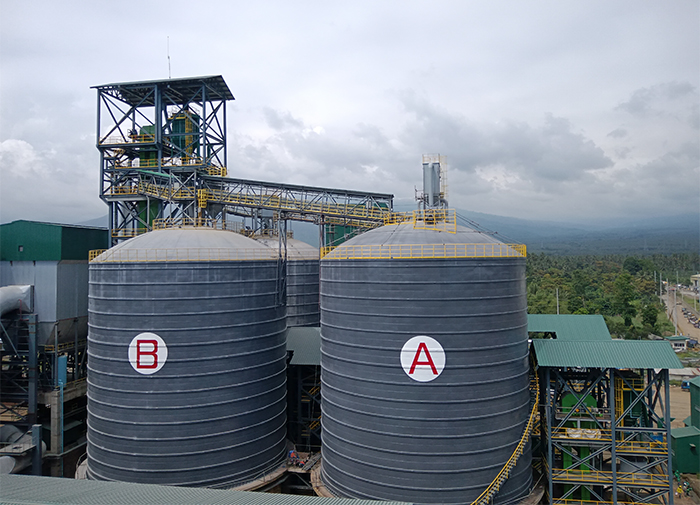

The effective diameter of a large welded steel silo can reach tens of meters. The silo body is cylindrical, with a spherical roof and a steel structure frame for the walls. The maximum capacity of a single silo can reach 80,000 tons. SRON has obtained more than 20 patents in silo process design and internal structure, demonstrating our commitment to innovative and advanced design concepts aimed at maximizing economic benefits for our customers.

Advantages

Structural Safety

Structural Safety: As a thin-walled container subjected to high loads, ensuring the structural safety of steel silos is paramount. During the early design stages of each silo, SRON thoroughly considers various factors including dead load, dynamic load, material load, earthquake load, wind load, snow load, and temperature effects. For overseas projects, SRON takes into account differences in national standards, utilizes international mainstream standards, and employs common industry software such as STAD PRO and SAAP2000. Finite element analysis is also employed to provide effective structural calculations.

High Welding Quality

trict welding process. Ensuring the quality of each weld in accordance with ISO 15607 welding process procedures.

Good Tightness

Excellent airtightness. Utilizing patented vacuum sealing technology, ensuring the physical properties of stored cement remain essentially unchanged for up to 9 months.

Low Investment Cost

Saves approximately 50% on construction materials and over 60% on land. Rapid construction, low costs, and quick returns.

Safe Structural Design

3D Display

Smooth Discharge System

Precision Manufacturing

Outstanding Performance

Intelligent Control

Process flow

Leveling & Surveying

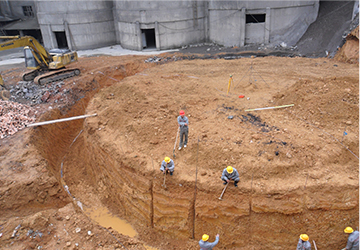

Foundation Excavation

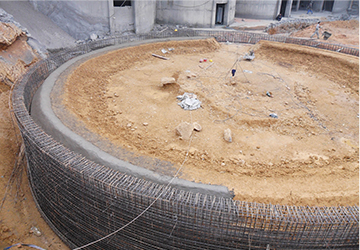

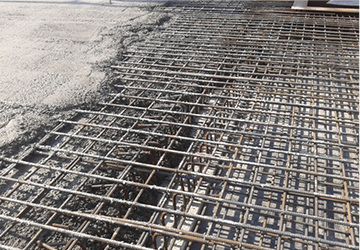

Formwork and Reinforcement

Concrete Pouring

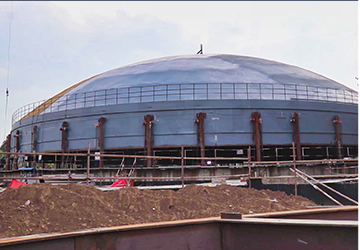

Installation for Silo Roof

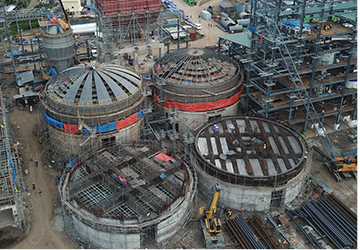

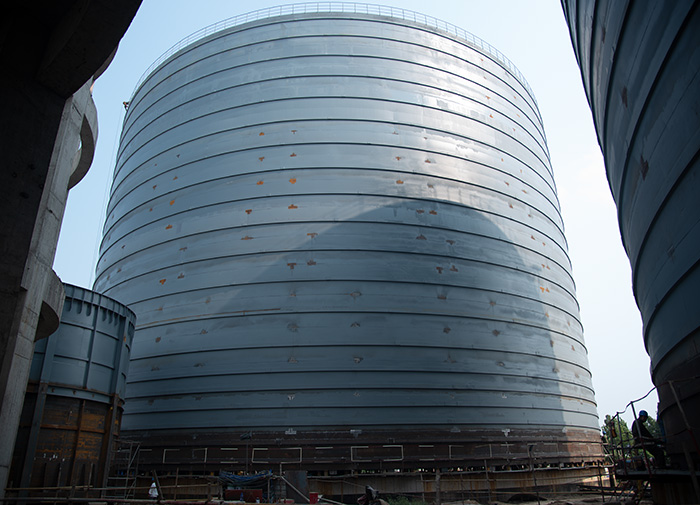

Silo-Body Installation

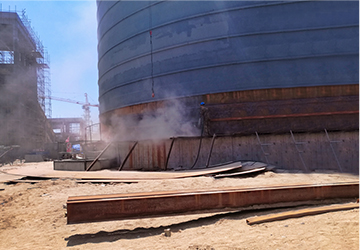

Rust Removal and Anticorrosion

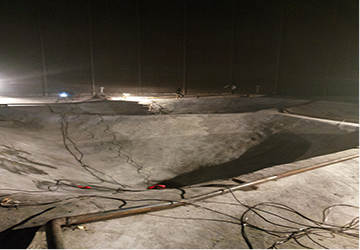

Masonry Construction in Silo

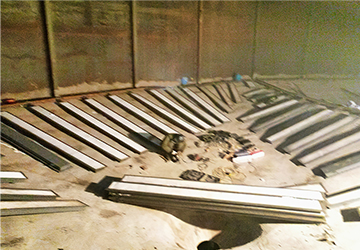

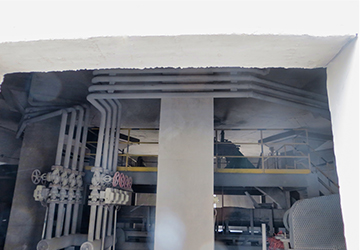

Gasification Facility Installation

Discharge Installation

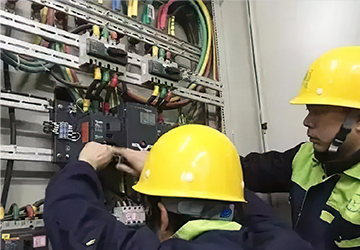

Electrical Equipment Installation

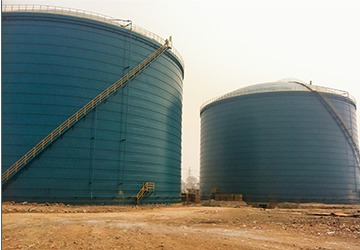

Completion

Parameter

SPECIFICATION SELECTION TABLE FOR 1,000-50,000 TONS WELDED STEEL SILO FOR CEMENT STORAGE (FLAT BOTTOM)
Serial number	Model	Nominal capacity	Diameter	Silo body height	Silo roof high	Total height	Height-diameter ratio
Serial number	Model	Nominal capacity	Diameter	Silo body height	Silo roof high	Total height	Height-diameter ratio
1	SRON-WSC-0.1	1000	9.0	13.0	0.70	13.7	1.44
2	SRON-WSC-0.15	1500	10.0	15.0	0.88	15.9	1.50
3	SRON-WSC-0.2	2000	12.0	15.0	0.97	16.0	1.25
4	SRON-WSC-0.25	2500	12.0	17.0	1.06	18.1	1.42
5	SRON-WSC-0.3	3000	13.0	18.0	1.06	19.1	1.38
6	SRON-WSC-0.5	5000	15.3	21.3	3.5	24.8	1.39
7	SRON-WSC-0.8	8000	19.1	22.4	4.0	26.4	1.17
8	SRON-WSC-1	10000	21.0	23.5	4.5	28.0	1.12
9	SRON-WSC-1.5	15000	24.8	24.6	5.1	29.7	0.99
10	SRON-WSC-2	20000	28.7	24.6	6.3	30.9	0.86
11	SRON-WSC-2.5	25000	30.5	26.8	7.2	34.0	0.88
12	SRON-WSC-3	30000	32.5	29.0	7.6	36.6	0.89
13	SRON-WSC-3.5	35000	34.4	30.1	8.4	38.5	0.88
14	SRON-WSC-4	40000	36.3	31.2	8.4	39.6	0.86
15	SRON-WSC-4.5	45000	38.2	31.2	8.4	39.6	0.82
16	SRON-WSC-5	50000	40.1	31.2	8.4	39.6	0.78
Remark:	1. Truss structure roof will be adopt when the silo diameter larger that 35meters; 2. The density applicate for process design is 1.3t/m3. For structure design,applicate1.6t/m3. 3. The steel silo structure design base on 6 grades seismic fortification. The specification table only list silo capacity up to 50,000 tons. Indeed, the maximum capacity for such type of silo reaches 120,000 tons. It can be adjusted according to the site conditions of customers.

Grouped Equipment

Tgd-Type Wire Belt Bucket Elevator

Dust Collector

Air Chute

Radar Level Meter

INDUSTRY SOLUTION

View More +

Cement Industry

In each section of cement plant, storage and transportation system plays a decisive role. For example, raw material homogenization and transportation, clinker storage and transportation, as well as finished cement storage, conveying and distribution. SRON provides bulk material storage and transportation system solutions for cement plant customers.

Thermal Power Industry

Fly ash is produced with the combustion of pulverized coal in thermal power plant, which will pollute the environment if it is not treated properly. Recovery and utilization of fly ash can avoid environmental pollution and increase economic benefits. SRON provides customers with fly ash storage, transportation and separation systems, and professional solutions.

Coal Mine

In the process of coal production, the traditional open-air storage of coal, loading of artificial loader are gradually phased out due to serious pollution and low efficiency. SRON provides customers with large coal storage silo, rapid loading system, rapid and quantitative loading system, long distance belt conveyor, and other solutions.

Reference

We have built projects in more than 30 countries and regions, with more than 900 sets of steel silos and up to 3 million tons of materials storage capacities.

View More +

6x10,000T Welded Clinker Silo System for San Miguel Corporation

This project is San Miguel Corporation, Davao, the Philippines 10x10000 tons steel silos system contracted by SRON. Among which, there are six clinker steel silos.

Material: Clinker

Reserves: 60,000 tons

Silo Type: Large welded steel silo

Hubei-JUHAI Environment Ceramsite and Phosphogypsum Storage Packaging Project

This project is the Phase II of the silo project of phosphogypsum solid waste industry of Hubei JUHAI Environment, which is the first ceramsite and phosphogypsum storage and packaging engineering project constructed by our company.

Material: Phosphogypsum

Number of Silos: 6

Silo type: Small welded steel silo

Indonesia 6,000T Cement Steel Silo Project for SIG

This is a cement transfer project, of which the owner is SIG, the largest cement producer in Indonesia.

Material: Cement

Reserves: 6000 tons

Silo type: Spiral silo
